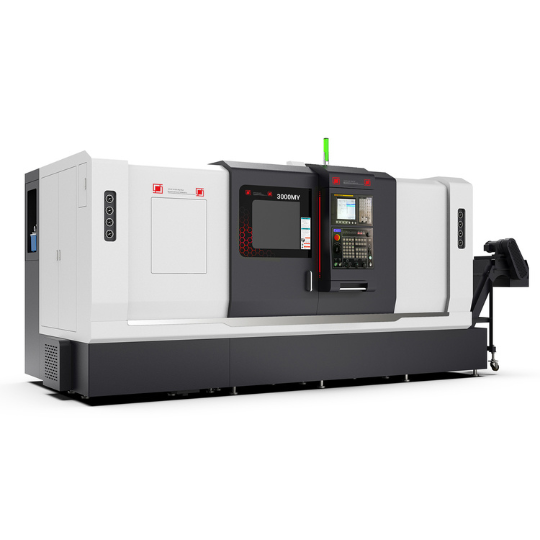

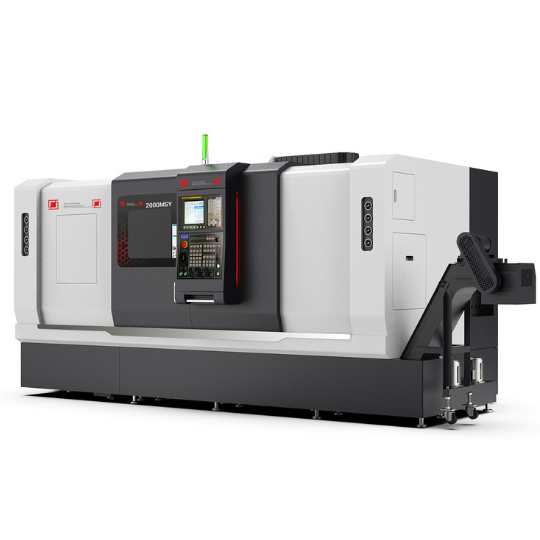

1200/1600/2000/3000 Series
Large High-Efficiency CNC Turning Center
- Suitable for larger workpiece sizes, up to a maximum of 3050 mm
- Optional dual spindle and dual turret for greater efficiency
- Greater rigidity and thermal stability
- Max. turning diameter 690/800 (mm)
- Max. machining length 1150/1550/2050/3050 (mm)
- Spindle nose A2-8/A2-11
- Chuck size 10″/12″/15″
- Max. speed 2500 (rpm)
- Direct drive spindle power 17 (KW)
- Mechanical spindle power 30/40 18-22/26 (KW)
- Servo hydraulic power turret 12T

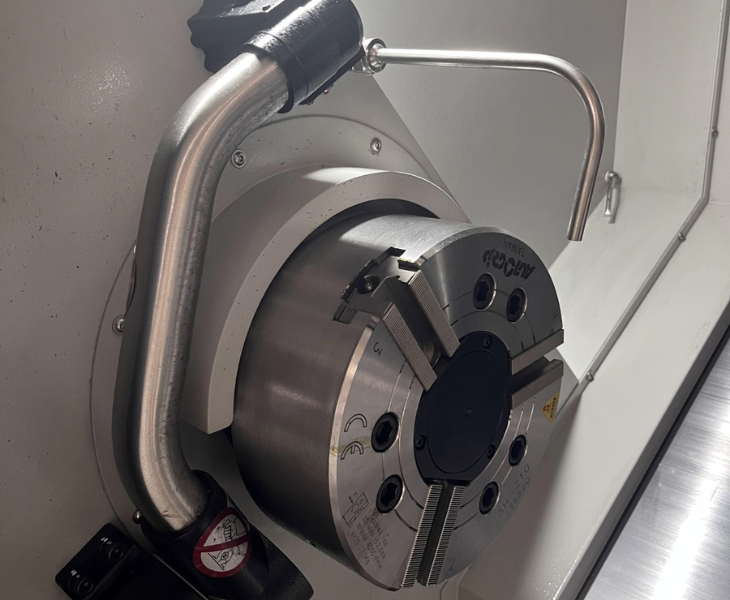

Options (Partial List)
- Automatic tool setting system
- Automatic safety door control
- Robotic interface
- Automatic workpiece receiving device
- Blowing device
- High-pressure cooling system
- Various types of power tool holders
Technical Specifications

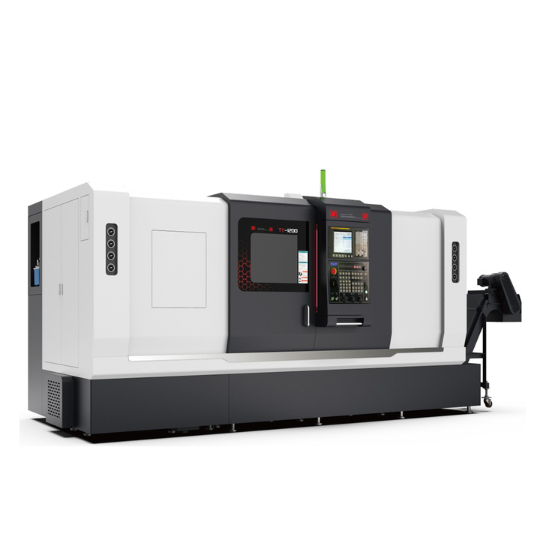

| Model | 1200 | 1200M | 1200MY | 1200MS | 1200MSY |
| Max. Rotation Diameter(mm) | Φ690 | Φ690 | Φ800 | Φ690 | Φ800 |
| Max. Processing Diameter(mm) | Φ640 | Φ530 | Φ450 | Φ530 | Φ400 |
| Max. Processing Length(mm) | 1150 (1100) | 1100 | 1050 | 1030 | 1030 |
| Spindle Nose | A2-8 (A2-11) | A2-8 | A2-8 | A2-8/A2-6 | A2-8/A2-6 |
| Chuck Model | 10″ (15″) | 10″ | 10″ | 10″/8″ | 10″/8″ |
| Max. Speed(rpm) | 3200 (2500) | 2500 | 2500 | 2500/4300 | 2500/4300 |
| Spindle Power(KW) | 15-18.5 | 17 | 17 | 17/19 | 17/19 |
| Servo Turret | Servo Turret-12T | BMT65-12T | BMT65MY-12T | BMT65-12T | BMT65MY-12T |

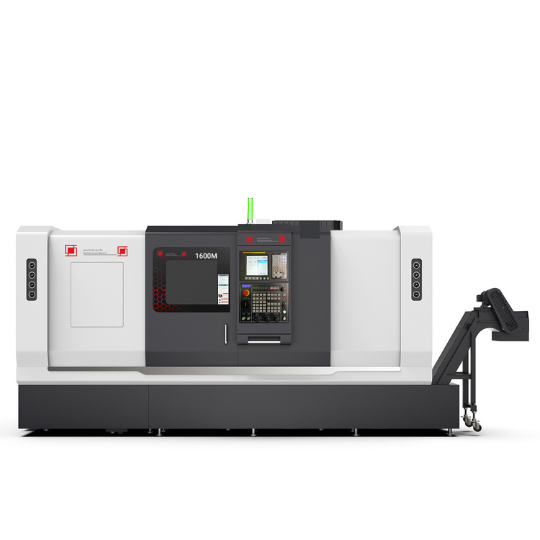

| Model | 1600 | 1600M | 1600MY | 1600MS | 1600MSY |
| Max. Rotation Diameter(mm) | Φ690 | Φ690 | Φ800 | Φ690 | Φ800 |
| Max. Processing Diameter(mm) | Φ640 | Φ530 | Φ450 | Φ530 | Φ400 |
| Max. Processing Length(mm) | 1500 | 1500 | 1450 | 1430 | 1430 |
| Spindle Nose | A2-11 | A2-8 | A2-8 | A2-8/A2-6 | A2-8/A2-6 |
| Chuck Model | 12″ (15″) | 10″ | 10″ | 10″/8″ | 10″/8″ |
| Max. Speed(rpm) | 2500 | 2500 | 2500 | 2500/4300 | 2500/4300 |
| Spindle Power(KW) | 15-18.5 | 17 | 17 | 17/19 | 17/19 |
| Servo Turret | Servo Turret-12T | BMT65-12T | BMT65MY-12T | BMT65-12T | BMT65MY-12T |
