600/800 Series
High Performance CNC Turning and Milling Compound Machine
- High Performance Main TypeCNC Lathe/ Turning and Milling Center
- Modular design to meet your diverse needs
- Single spindle/double spindle, single turret/double turret optional
- 8″ 10″ 12″ hydraulic chuck system
- A2-6/A2-8/A2-11 spindle nose
- 4″ color LCD monitor
- Built-in USB port
- Spindle positioning
- Intelligent control system selection
- Automatic chip conveyor

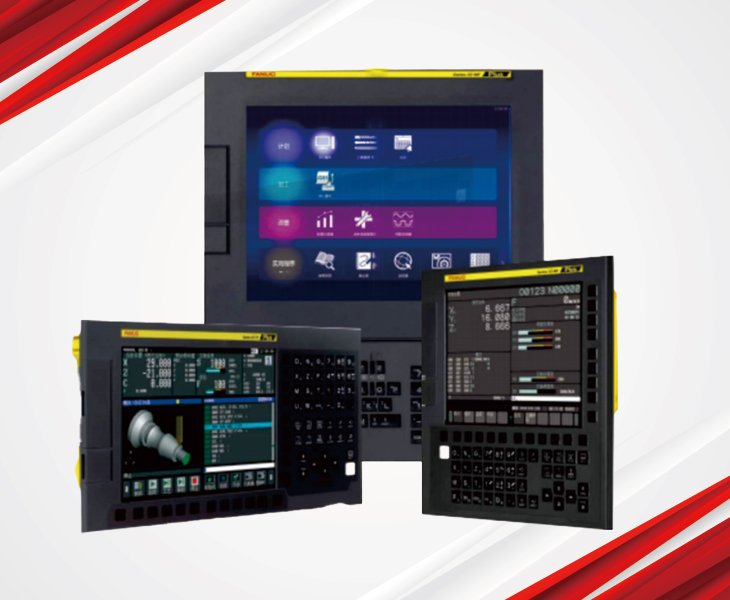

Specifications & FANUC Control System
- turning diameter for 700/800 (mm)
- machining length for 600/800 (mm)
- A2-6/A2-8 spindle nose
- Chuck type 8″/10″
- speed 4300/2500 (rpm)
- Direct drive spindle power 19/17 (KW)
- Mechanical spindle power 30/40 15/18.5 (KW)
- Servo hydraulic power turret 12T
- High processing performance
- High usability
- High operating rate

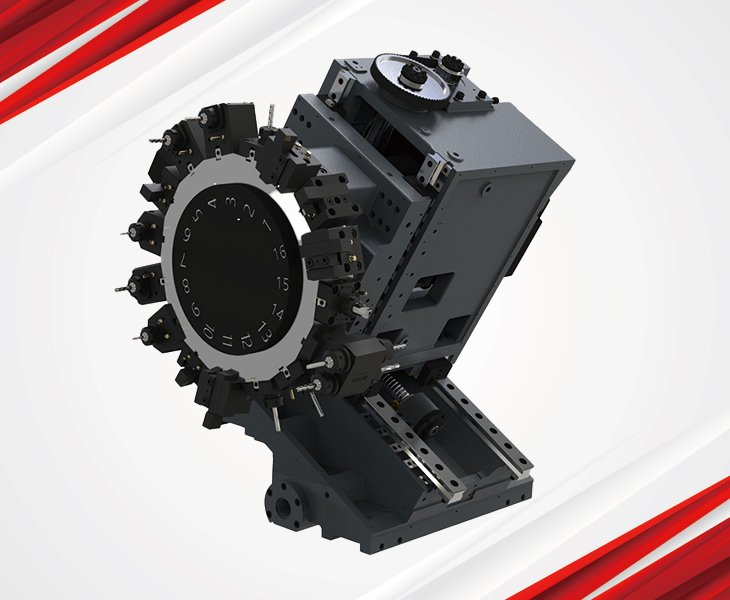

BMT55 Servo Power Turret
- Power: 37/5.5KW
- Speed: 6000rpm
- Positioning accuracy: ±2”
- Repeat positioning accuracy: ±1”
- High rigidity, heavy cutting
- Integrated positive Y-axis structure
- Smoother and flatter flat contour machining
- More suitable for composite curved surfaces and contour machining
- The integrated 30° inclined bed is matched with an inclined saddle, and the four sliders are evenly stressed.
- The stroke is smoother and the ball wear of the guide rail slider is reduced.
- It can withstand long-term wear and tear, and its precision and life are more guaranteed.
Technical Specifications
| Model | 600 | 610 | 600M | 600MY | 600MS | 600MSY |
| Max. Rotation Diameter(mm) | Φ700 | Φ700 | Φ700 | Φ800 | Φ700 | Φ800 |
| Max. Processing Diameter(mm) | Φ670 | Φ670 | Φ540 | Φ490 | Φ540 | Φ400 |
| Max. Processing Length(mm) | 610 | 550 | 600 | 600 | 570 | 570 |
| Spindle Nose | A2-6 | A2-8 | A2-6 | A2-6 | A2-6/A2-6 | A2-6/A2-6 |
| Chuck Model | 8″ (10″) | 10″ | 8″ | 8″ | 8″/8″ | 8″/8″ |
| Max. Speed(rpm) | 4500 | 2500 | 4300 | 4300 | 4300/4300 | 4300/4300 |
| Spindle Power(KW) | 19 | 17 | 19 | 19 | 19/19 | 19/19 |
| Servo Turret | Servo Turret-12T | Servo Turret-12T | BMT55-12T | BMT55MY-12T | BMT55-12T | BMT65MY-12T |
| Model | 800 | 810 | 800M | 800MY | 800MS | 800MSY |
| Max. Rotation Diameter(mm) | Φ700 | Φ700 | Φ700 | Φ800 | Φ700 | Φ800 |
| Max. Processing Diameter(mm) | Φ670 | Φ670 | Φ540 | Φ490 | Φ540 | Φ400 |
| Max. Processing Length(mm) | 810 | 760 | 800 | 800 | 770 | 770 |
| Spindle Nose | A2-6 | A2-8 | A2-6 | A2-6 | A2-6/A2-6 | A2-6/A2-6 |
| Chuck Model | 8″ | 10″ | 8″ | 8″ | 8″/8″ | 8″/8″ |
| Max. Speed(rpm) | 4500 | 3200 | 4300 | 4300 | 4300/4300 | 4300/4300 |
| Spindle Power(KW) | 15-18.5 | 15-18.5 | 19 | 19 | 19/19 | 19/19 |
| Servo Turret | Servo Turret-12T | Servo Turret-12T | BMT55-12T | BMT55MY-12T | BMT55-12T | BMT65MY-12T |
