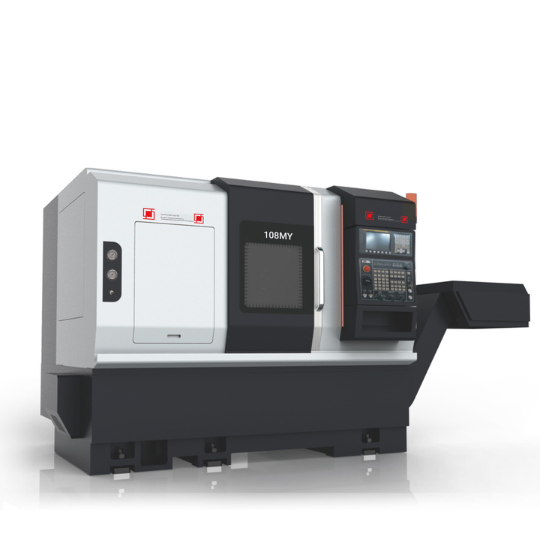

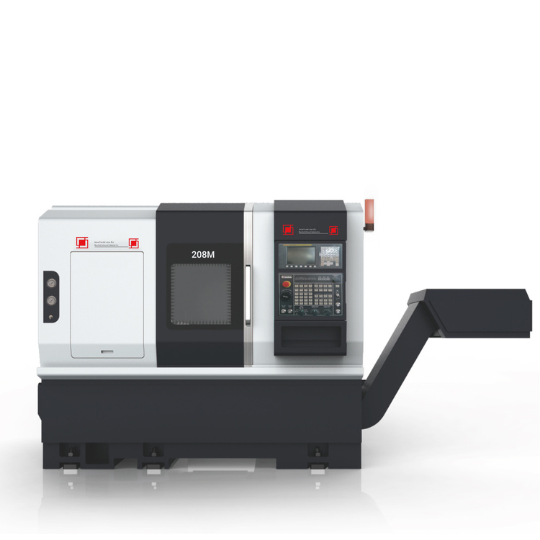

106/108/208 Series
High Precision CNC Lathe Turning and Milling Machine
- Modular structure, more customization
- CNC lathe/ turning center/ turning and milling composite machine, Choose according to your needs
- Flexible Production Line Solution

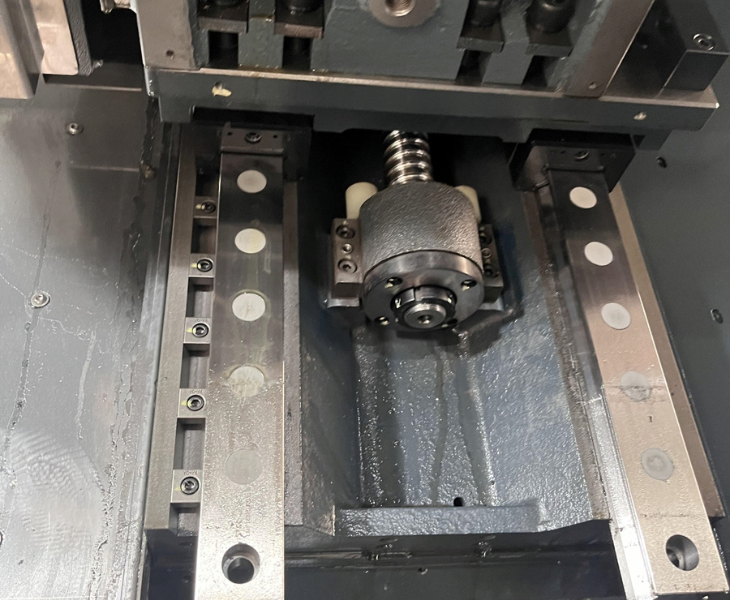

Ingenious Manufacturing Unique Patent
- Integrated gantry structure positive Y-axis power cutting head
- Inclined bed, stepped, flat rail structure (base)
- Integrated mechanical arm (truss)
- Internal waste separation structure of the base (bed)
- CNC turning and milling composite machine
- Appearance of CNC lathe

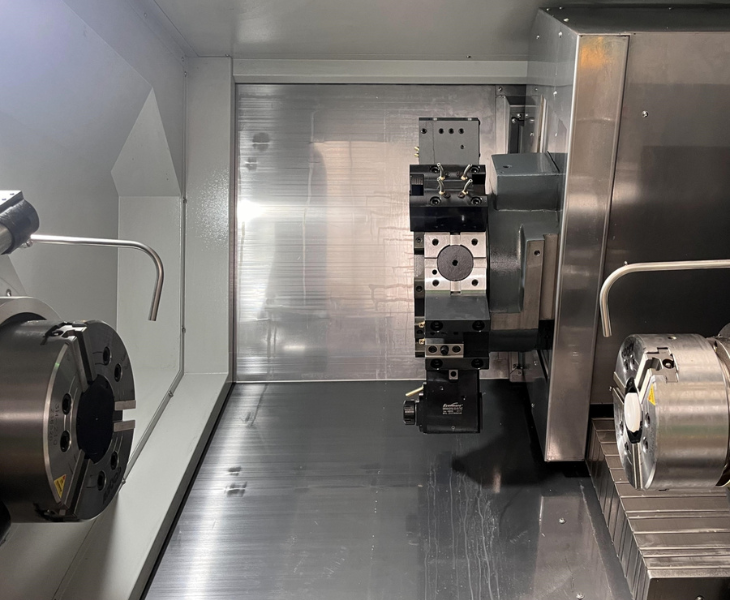

FANUC CNC
Easier to use and more powerful and Prevent sudden shutdown of machine tools through preventive maintenance.
- Abundant fault prediction functions (Easily lock the fault location and shorten the recovery time)
- Diagnosis/maintenance functions
High processing performance
- Efficient processing technology-shorten cycle time
- Fine surface treatment technology-achieve high-grade processing
High operating rate
Always support various operations on the processing site
- FANUC INMI
- Standard/Customized Functions
Initiatives in the Internet of Things
- Support rich on-site network
Technical Data
| Model | 106 | 106M | 106MY | 108 | 108M | 108MY |
| Max. Rotation Diameter(mm) | Φ600 | Φ600 | Φ600 | Φ600 | Φ600 | Φ600 |
| Max. Processing Diameter(mm) | Φ360 | Φ300 | Φ300 | Φ360 | Φ300 | Φ300 |
| Max. Processing Length(mm) | 360 | 300 | 220 | 350 | 290 | 210 |
| Spindle Nose | A2-5 | A2-5 | A2-5 | A2-6 | A2-6 | A2-6 |
| Chuck Model | 6″ | 6″ | 6″ | 8″ | 8″ | 8″ |
| Max. Speed(rpm) | 5500 | 5500 | 5500 | 4500 | 4300 | 4300 |
| Spindle Power(KW) | 17.5 | 17.5 | 17.5 | 11/15 | 18/22 | 18/22 |
| Servo Turret | Servo Turret-12T | BMT45-12T | BMT45-12T | Servo Turret-12T | BMT45-12T | BMT45-12T |
| Model | 208 | 208M | 208MS | 208MY | 208MSY |
| Max. Rotation Diameter(mm) | Φ600 | Φ600 | Φ600 | Φ680 | Φ680 |
| Max. Processing Diameter(mm) | Φ500 | Φ400 | Φ350 | Φ400 | Φ370 |
| Max. Processing Length(mm) | 550 | 400 | 400 | 360 | 400 |
| Spindle Nose | A2-6 | A2-6 | A2-6 | A2-6 | A2-6 |
| Chuck Model | 8″ | 8″ | 8″ | 8″ | 8″ |
| Max. Speed(rpm) | 4300 | 4300 | 4300 | 4300 | 4300 |
| Spindle Power(KW) | 15/18.5 | 18/22 | 18/22 | 18/22 | 18/22 |
| Servo Turret | Servo Turret-12T | BMT45-12T | BMT45-12T | BMT45-12T | BMT55-12T |
