Double Spindle Multi-Functional CNC Turning Center with Double Turret
The machine is equipped with dual spindles and turrets, and there are 8 tool positions available in the back-end processing space. allowing the total tool capacity of the machine to reach 20T,which can support a variety of different unique processing tool method accurate.
- Double spindle, double turret
- High-End, High-Efficiency
- CNC turning and milling composite
Processing Efficiency
We have built this high-end, high-efficiency turning center machine so that you can complete complex workpiece processing in one piece of equipment with extremely high accuracy.
Lower Turret
Unloader lower turret clamp (standard configuration) + discharge conveyor belt
Automation of the gripper jaws by the lower turret
| Diameter range | mm | 15-51 |
| Length range | mm | 30-100 |
| Weight range | Kg | 0.1-1.5 |
Technical Specifications
| Model | 150MS-II | 150MS-III | 150MSY-II | 150MSY-III |
| Max. Rotation Diameter(mm) | Φ380 | Φ380 | Φ380 | Φ380 |
| Max. Processing Diameter(mm) | Φ100 | Φ100 | Φ100 | Φ100 |
| Max. Processing Length(mm) | 150 | 150 | 150 | 150 |
| Spindle Nose | A2-5 | A2-5 | A2-5 | A2-5 |
| Chuck Model | 5” | 5” | 5” | 5” |
| Max. Speed(rpm) | 5500 | 5500 | 5500 | 5500 |
| Spindle Power(KW) | 17.5/125 | 17.5/125 | 17.5/125 | 17.5/125 |
| Servo Turret | BMT45 | BMT45 | BMT45+Y | BMT45+Y |
System Functions
Fast processing, fast debugging, fast programming compound processing machine
- Spindle Synchronization, Same Phase
- Servo Axis Synchronization Control

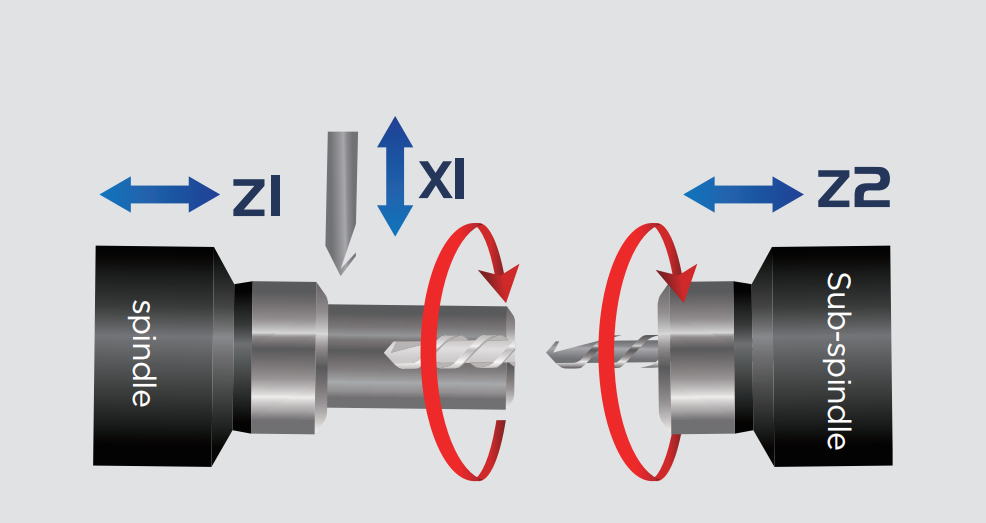

- Servo Axis Weight Tube
- Mix Control
The main spindle and sub-spindle can run synchronously to facilitate the connection of circular or polygonal workpieces.
It is used for processing long workpiece clamps, such as turning teeth, just tapping, and knurling.
When the positive spindle continues to run, the side milling axis can be superimposed on the rigid attack, reducing the spindle stop time.
Program instructions can be used to exchange servo axes that control other paths.
