CNC Tapping Machining Center

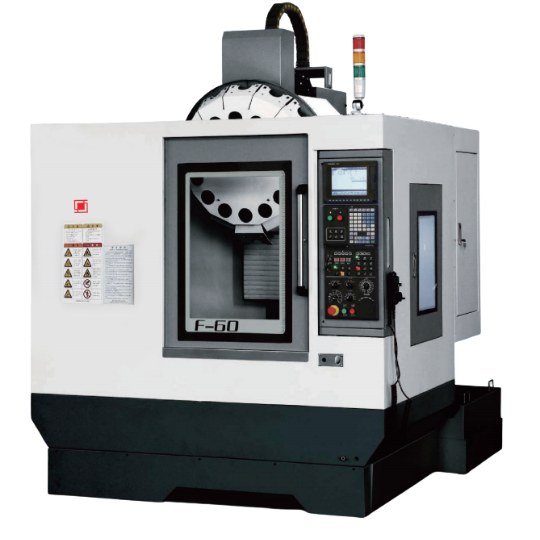

F-50/60 drilling and tapping center is most suitable for multi-process machining of small parts with multiple working surfaces, such as milling, drilling, boring, reaming, tapping, two-dimensional and three-dimensional curved surfaces. The three-axis adopts high-precision, high-load, high-speed, high-rigidity, and low-noise linear ball guides to provide perfect feed performance. The three axes are directly driven by precision ball screws and servo motors, without backlash and servo hysteresis. It provides double production efficiency and vibration-free rigid tapping, which can realize high-speed tapping. High rigidity ductile iron bed.
The machine tool adopts a three-point support method, which is easy to install and ensures accuracy and stability. The best spindle design provides the rigidity of the spindle head and spindle when cutting chips under heavy load, and ensures the geometric accuracy of the spindle. The spindle motor and the spindle are designed to be directly connected, and the maximum speed can reach 15000/20000 rpm.
The base chip removal design is rear chip removal type, providing the best chip removal angle, equipped with a high-pressure water pump chip flushing device, combined with the inclined base, so that iron chips can be smoothly discharged into the chip storage box.
All three axes of the machine adopt high-precision laser measurement and cyclic test inspection, so that each axis has good repeatability, accurate positioning and high accuracy of the machine.
The large casting of the machine is a box-shaped structure, and the casting itself has the characteristics of high rigidity. The three-axis motor and ball screw adopt direct drive, pre-tensioning, no backlash, and good accuracy. The chassis and base are made of body castings to ensure that the machine does not leak water and has excellent chip removal.
The special structure is adopted to effectively shorten the electronic induction time, and the exchange time of adjacent tools only needs 1 sec. The machine is simple in design and adopts a beautiful and generous rear chip removal design. The overall area is small, which is beneficial to the best use of plant space. The three-axis gauge adopts high-precision linear slides, and the fast moving speed can reach 48,48,48m/min.
|
Spindle | Model | Unit | F-50 | F-60 |
| Spindle taper | NO.30 | |||
| Spindle drive mode | Direct | |||
| Spindle speed | rpm | 15000/20000 | ||
| Worktable | Worktable size | mm | 650*400 | 700*420 |
| Max.loading | Kg | 250 | 300 | |
| T-slot | mm | 3*14*125 | ||
| Moving Range/Rapid Speed
| X axis travel | mm | 500 | 600 |
| Y axis travel | mm | 400 | 400 | |
| Z axis travel | mm | 300 | 350 | |
| Distance from table surface to spindle nose | mm | 150-450 | ||
| Distance from guide surface to spindle center | mm | 420 | ||
| Fast-moving | m/min | X/Y/Z:48 | ||
| Cutting feed movement | m/min | 1-12 | ||
| Tool | Handle type | BT30 | ||
| Latin type | 45° | |||
| Tool capacity | Pcs | 16 | ||
| Tool length | mm | 200 | ||
| Tool Weight | kg | 3 | ||
| Tool change(T/T) | sec | 1.2 | ||
| Motor | Spindle motor(continuous/30 minutes) | kw | 5.5 | |
| Three axis motor X/Y/Z | kw | 1.5/Z:3/0 | ||
| Lubricate the motor | W | 25 | ||
| Cutting motor | W | 460 | ||
| Others | L*W*H | mm | 1680*2136*2403 | |
| Machine weight | kg | 2800 | 3000 | |
