TK10/20/35/65
Vertical 5-Axis CNC Machining Center with High Dynamic Performance
- Universal milling/turning/planing/grinding/hobbing/metal 3D printing.
- Machine tools are widely used in high-end manufacturing industries such as new energy vehicles, aerospace, medical equipment, and semiconductors.
- High precision, high-speed, efficient, and stable intelligent manufacturing equipment technology machine tools.
- The overall casting bed has unparalleled stability.
- The moving beam Y-axis + high-rigidity cradle makes the machine have extraordinary cutting rigidity.
- The weight of the moving parts of the fuselage is optimized to achieve extremely high dynamic performance.

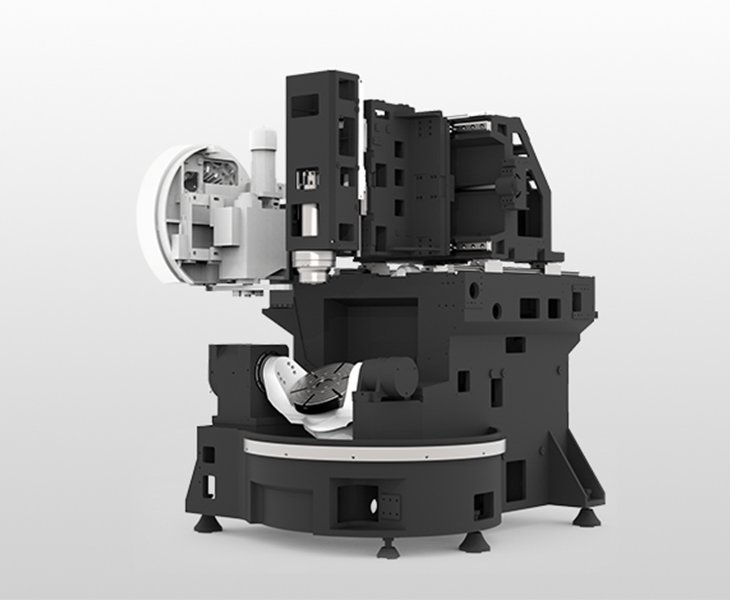

TK10/20 Structure
- Integrally cast bed
- Moving Y-axis beam
- High rigidity cradle structure

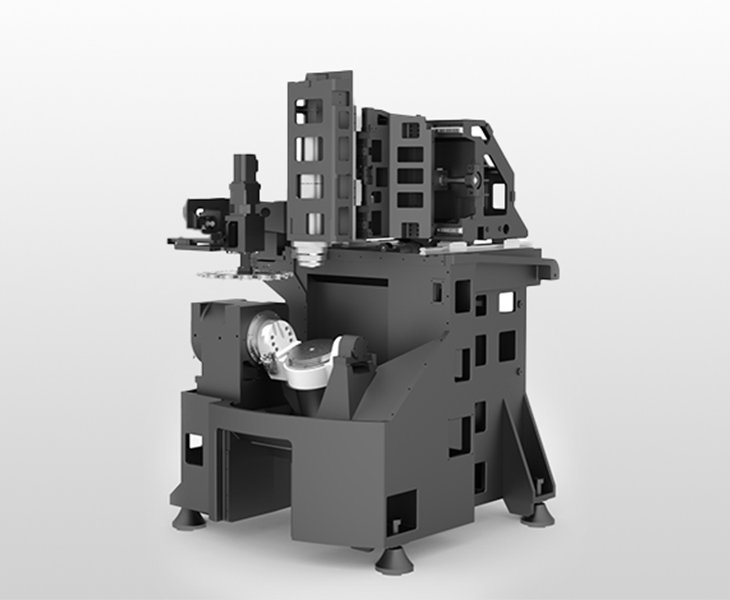

TK35/65 Structure
- High rigidity and stability.
- Short three-axis travel, large machining range.
- Natural aging ensures that the frame’s geometric accuracy is maintained over time.
- The A-axis is mounted on a fixed bed casting (not on a moving worktable or linear axis).
- The C-axis cradle is a double-support structure.
Application

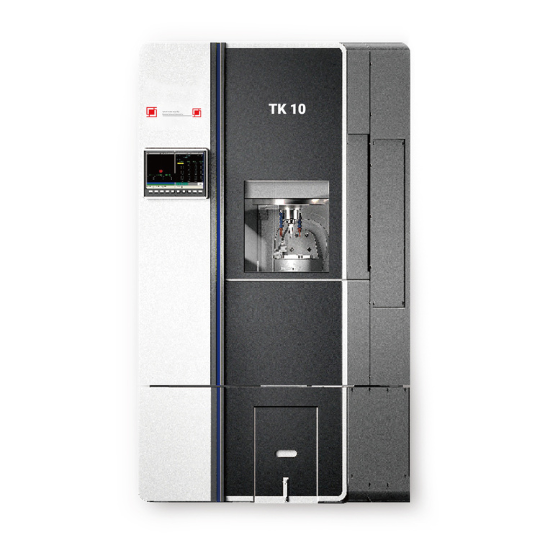

TK10
Designed specifically for the jewelry industry, its functions can completely replace manual labor.

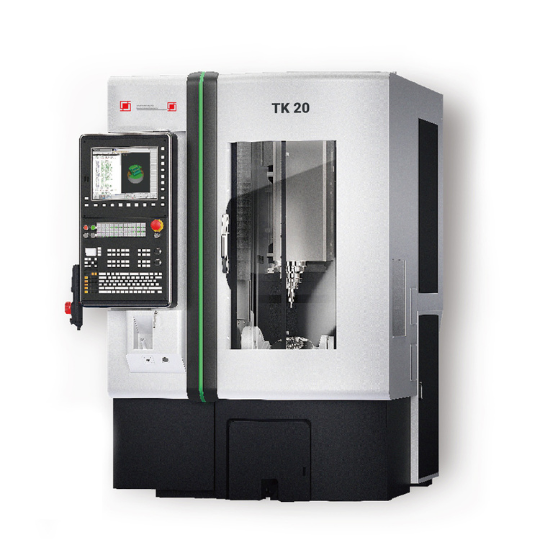

TK20
Providing multi-process integration solutions for small impellers, small medical implants, watches, and small automotive parts.

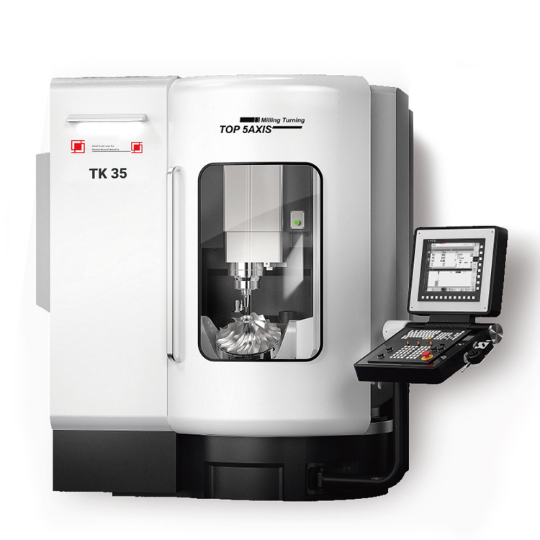

TK35
Initially tailored for small molds, it was later expanded to the cutting tool industry, the medium-sized medical implant industry, and the small turbofan impeller industry.

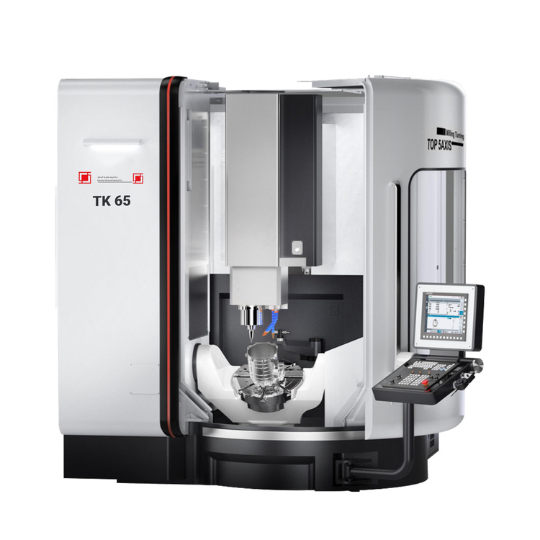

TK65
Widely used in molds, civil aerospace, automotive industry, etc.
Technical Specification
| ITEM | UNIT | TK10 | TK20 | TK35 | TK65 | |
| Worktable | Workpiece dimensions (Dia.*H) | mm | φ100*100 | φ200*200 | φ350*300 | φ650*410 |
| Worktable dimensions | mm | φ100 | φ200 | φ350 | φ500 | |
| T-slot | / | / | / | 6-M10 | 8-M60 | |
| Maximum workpiece weight | kg | 10 | 30 | 100 | 500 | |
| Linear axis travel | X/Y/Z axis travel range | mm | 130/100/130 | 250/250/250 | 380/420/365 | 650/620/520 |
| Rotary axis travel | B axis travel range | ° | +20°-125° | ±120° | ±120° | ±120° |
| C axis travel range | ° | n×360° | n×360° | n×360° | n×360° | |
Processable parts
New energy
Medical Equipment
Ship Industry
Mold Industry
Machinery Manufacturing
Aerospace
Automobile Industry
